优派克EUPEC 优派克EUPEC可控硅二级管-T系列、D系列、DxS系列

产品分类：

优派克EUPEC 优派克EUPEC可控硅二级管-T系列、D系列、DxS系列

订购热线：029-62347561

产品详情

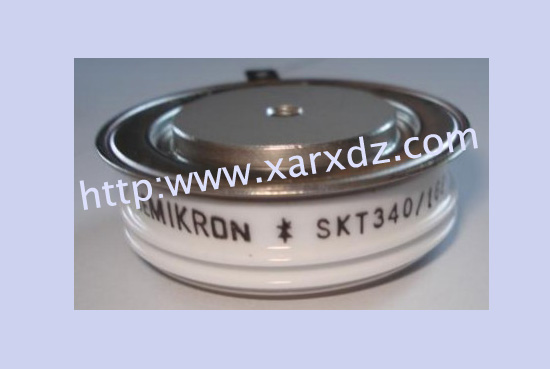

英飞凌 ● 优派克（ EUPEC ）		● T 系列相控可控硅（ Phase Control Thyristors ）—平板型
		● DxNx 系列普通二极管（ Rectifier Diodes ）—平板型
		● DxSx 系列快速二极管（ Fast Diodes ）—平板型


● T 系列相控可控硅（ Phase Control Thyristors ）—平板型
	Up to 800V

Part Number	VDRM /VRRM (V)	ITAVM (A) @ TC = 85 °C	Package Style (mm)	Outline
T348N02-06TOF	200,400,600	348	a 41 × b23 × c14	epoxy disc case (环氧平板型）
T568N02-06TOF	200,400,600	568	a 41 × b23 × c14
T828N02-06TOF	200,400,600	828	a 50 × b30 × c14
T1078N02-06TOF	200,400,600	1078	a 50 × b30 × c14
T1258N02-06TOF	200,400,600	1258	a 60 × b36 × c14
T3709N02-06TOF	200,400,600	3709	a 100 × b65 × c26

Up to 2000V

Part Number	VDRM /VRRM (V)	ITAVM (A) @ TC = 85 °C	Package Style (mm)	Outline
T178N06-18TOF	600,800,1000,1200,1400,1600,1800	178	a 41 × b23 × c14	epoxy disc case (环氧平板型)
T218N06-18TOF	600,800,1000,1200,1400,1600,1800	218
T298N06-16TOF	600,800,1000,1200,1400,1600	298
T358N06-18TOF	600,800,1000,1200,1400,1600,1800	358
T378N12-16TOF	1200,1400,1600	378
T388N06-18TOF	600,800,1000,1200,1400,1600,1800	388	a 50 × b30 × c14
T508N12-18TOF	1200,1400,1600,1800	508	a 50 × b30 × c14
T509N12-18TOF	1200,1400,1600,1800	508	a 57 × b36 × c26
T588N06-18TOF	600,800,1000,1200,1400,1600,1800	588	a 50 × b30 × c14
T589N06-18TOF	600,800,1000,1200,1400,1600,1800	588	a 57 × b36 × c26
T618N06-14TOF	600,800,1000,1200,1400	618	a 50 × b30 × c14
T619N06-14TOF	600,800,1000,1200,1400	618	a 57 × b36 × c26
T718N06-16TOF	600,800,1000,1200,1400,1600	718	a 60 × b36 × c14
T878N12-18TOF	1200,1400,1600,1800	878	a 60 × b36 × c14
T879N12-18TOF	1200,1400,1600,1800	878	a 57 × b36 × c26
T1049N12-18TOF	1200,1400,1600,1800	1050	a75 × b48 × c26
T1189N12-18TOF	1200,1400,1600,1800	1190
T1509N12-18TOF	1200,1400,1600,1800	1500
T1989N12-18TOF	1200,1400,1600,1800	1990	a 100 × b65 × c26
T3159N12-18TOF	1200,1400,1600,1800	3160	a 110 × b75 × c26
T1500N12-18TOF	1200,1400,1600,1800	1500	a 74 × b50 × c26 Ceramic	Ceramic disc case (陶瓷平板型)

Up to 3000V

Part Number	VDRM /VRRM (V)	ITAVM (A) @ TC = 85 °C	Package Style (mm)	Outline
T458N20-26TOF	2000, 2200,2400,2600	459	a 50 × b30 × c14	epoxy disc case (环氧平板型)
T459N20-26TOF	2000, 2200,2400,2600	459	a 57 × b36 × c26
T639N18-22TOF	1800,2000,2200	640	a 57 × b36 × c26
T658N22-26TOF	2200,2400,2600	659	a 60 × b36 × c14
T659N22-26TOF	2200,2400,2600	659	a57 × b36 × c26
T699N18-22TOF	1800,2000,2200	699	a57 × b36 × c26
T708N18-22TOF	1800,2000,2200	699	a 60 × b36 × c14
T709N20-26TOF	2000, 2200,2400,2600	700	a75 × b48 × c26
T829N20-26TOF	2000, 2200,2400,2600	829
T1039N18-22TOF	1800,2000,2200	1039
T1219N20-28TOF	2000, 2200,2400,2600,2800	1220
T1329N18-22TOF	1800,2000,2200	1329
T1869N16-22TOF	1600,1800,2000,2200	1866	a 100 × b65 × c26
T2159N20-28TOF	2000, 2200,2400,2600,2800	2159	a 110 × b75 × c26
T2709N16-22TOF	1600,1800,2000,2200	2709	a 110 × b75 × c26
T2160N22-28TOF	2200,2400,2600,2800	2160	a 120 × b86 × c26 Ceramic	Ceramic disc case (陶瓷平板型)
T2480N22-28TOF	2200,2400,2600,2800	2480
T2710N16-22TOF	1600,1800,2000,2200	2710
T4771N22-28TOF	2200,2600,2800,2900	4640	a 150 × b100 × c26 Ceramic
T4301N22-28TOF	2200,2600,2800,2900	4300	a 150 × b100 × c35 Ceramic

Up to 4500V

Part Number	VDRM /VRRM (V)	ITAVM (A) @ TC = 85 °C	Package Style (mm)	Outline
T379N36-42TOF	3600,3800,4000,4200	422	a 57 × b36 × c26	epoxy disc case (环氧平板型)
T729N36-42TOF	3600,3800,4000,4200	730	a 75 × b48 × c26
T869N30-36TOF	3000,3200,3400,3600	860
T929N30-36TOF	3000,3200,3400,3600	930
T1929N30-38TOF	3000,3200,3400,3600,3800	1930	a 110 × b75 × c26
T2009N30-36TOF	3000,3200,3400,3600	2060	a 110 × b75 × c26
T3101N40-44TOH	4000,4200,4400	3160	a 150 × b100 × c35 Ceramic	Ceramic disc case (陶瓷平板型)
T1971N38-44TOH	3800,4000,4200,4400	1730	a 120 × b86 × c26 Ceramic
T380N32-38TOF	3200,3400,3600,3800	380	a 57 × b34 × c26 Ceramic
T730N36-42TOF	3600,3800,4000,4200	730	a 75 × b50 × c26 Ceramic
T731N38-44TOH	3800,4000,4200,4400	930
T901N28-36TOF	2800,3200,3400,3600	950
T1601N30-36TS20	3000,3200,3400,3600	1920	a 120 × b75 × c35Ceramic
T3401N31-36TOF	3100,3300,3500,3600	3880	a 150 × b100 × c35 Ceramic
T3801N31-36TOF	3100,3300,3500,3600	4190	a 150 × b100 × c26 Ceramic

Up to 5500V

7000V

8000V

Part Number	VDRM /VRRM (V)	ITAVM (A) @ TC = 85 °C	Package Style (mm)	Outline
T1551N48-52TOH	4800,5000,5200	1830	a 120 × b86 × c26 Ceramic
T2401N48-52TOH	4800,5000,5200	2750	a 150 × b100 × c35 Ceramic
T3441N48-52TOH	4800,5000,5200	3200	a 150 × b100 × c26 Ceramic
T2161N48-52TOH	4800,5000,5200	2170	a 120 × b75 × c35 Ceramic
T4021N48-53TOH	4800,5000,5200,5300	3920	a 172 × b115 × c35 Ceramic
T1451N48-52TOH	4800,5000,5200	1690	a 120 × b86 × c35 Ceramic
T2851N48-52TOH	4800,5000,5200	3000	a 150 × b100 × c35Ceramic	Ceramic disc case (陶瓷平板型)
T2351N48-52TOH	4800,5000,5200	2360	a 120 × b86 × c26 Ceramic
T1651N60-70TOH	6000,6500,7000	1685	a 120 × b86 × c35 Ceramic
T571N65TOF	6500	540	a 75 × b50 × c26 Ceramic
T281N65TOF	6500	280	a 58 × b34 × c26 Ceramic
T1201N60-70TOH	6000,6500,7000	1230	a 120 × b86 × c35 Ceramic
T201N60-70TOH	6000,6500,7000	245	a58 × b34 × c26 Ceramic
T501N60-70TOH	6000,6500,7000	640	a 75 × b50 × c26 Ceramic
T551N60-70TOH	6000,6500,7000	600	a 75 × b50 × c35 Ceramic
T1081N60-70TOH	6000,6500,7000	1330	a 120 × b86 × c26Ceramic
T1851N60-70TOH	6000,6500,7000	1850	a 120 × b86 × c26Ceramic
T2251N70-80TOH	7000,7500,8000	2280	a 150 × b100 × c26 Ceramic
T1901N70-80TOH	7000,7500,8000	2130	a 150 × b100 × c35 Ceramic
T2871N75-80TOH	7500,8000	2680	a 172 × b115 × c35 Ceramic

Up to 7000V ， 8000V Light Triggered Thyristors 光控晶闸管

Part Number	VDRM /VRRM (V)	ITAVM (A) @ TC = 85 °C	Package Style (mm)	Outline
T553N70TOH	7000	550	a 76 × b50 × c35 Ceramic
T1503N75-80TS07	7000,8000	1770	a 150 × b100 × c40 Ceramic
T2563NH75-80TOH	7000,8000	2520	a 172 × b115 × c40 Ceramic c


● DxNx 系列普通二极管（ Rectifier Diodes ）—平板型
	Up to 800V，2000V，3000V，4500V，5500V， 7000V，10000V

Part Number	VRRM (V)	IFAVM (A)	@ TC°C	Package Style (mm)	Outline
25DN06	600	1145	155	a 25 × b22 × c3.65	Welding Diodes
38DN04-06	400,600	3885	120	a 38 × b34 × c4.1
46DN02-06	200,400,600	5100	118	a 46 × b43 × c4.1
56DN02-06	200,400,600	6400	126	a 56 × b50 × c5.1
65DN02-06	200,400,600	8470	98	a65 × b58 × c5
D2228N04-06T	400,600	2230	110	a60 × b36 × c14	epoxy disc case (环氧平板型)
D4457N02-06T	200,400,600	4460	110	a 60 × b47 × c8
D5807N02-06T	200,400,600	5870	110	a 72 × b57 × c8
D5809N02-06T	200,400,600	5800	58	a 75 × b48 × c26
D8019N02-06T	200,400,600	8020	56	a 100 × b65 × c26
D8407N04-06T	400,600	4725	130	a 73 × b57 × c8
D428N08-20T	800--2000	430	139	a41 × b23 × c14
D1049N08-18T	800--1800	1050	130	a 57 × b36 × c26
D748N20-28T	2000--2800	750	100	a 50 × b30 × c14
D1029N18-26T	1800--2600	1030	100	a57 × b36 × c26
D1709N20-24T	2000,2200,2400	1700	90	a 75 × b48 × c26
D2209N20-28T	2000--2800	2200	100	a 75 × b48 × c26
D2659N20-24T	2000,2200,2400	2650	100	a 75 × b48 × c26
D4709N20-28T	2000--2800	4700	100	a 110 × b75 × c26
D1069N36-44T	3600,4000,4400	1070	100	a 75 × b48 × c26
D749N36-48T	3600,4000,4400,4800	750	100	a57 × b36 × c26
D1809N32-48T	3200--4800	1800	100	a75 × b48 × c26
D2200N20-28T	2000--2800	2200	100	a 74 × b50 × c26 Ceramic	Ceramic disc case (陶瓷平板型)
D2650N20-24T	2000,2200,2400	2650	100	a 74 × b50 × c26 Cerami
D4201N16-22T	1600,1800,2000,2200	4830	100	a 120 × b86 × c35 Ceramic
D3501N32-42T	3200,3600,4000,4200	3690	100	a 120 × b86 × c35 Ceramic
D2201N45T	4500	2320	100	a 100 × b63 × c26 Ceramic
D6001N45-50T	4500,5000	6440	100	a 150 × b100 × c26Ceramic
D1800N32-48T	3200--4800	1800	100	a 74 × b50 × c26 Ceramic
D711N58-68T	5800,6000,6500,6800	790	100	a 58 × b34 × c26Ceramic
D1481N58-68T	5800,6000,6500,6800	1650	100	a 75 × b50 × c26 Ceramic
D3001N58-68T	5800,6000,6500,6800	2900	100	a 120 × b86 × c35 Ceramic
D3041N58-68T	5800,6000,6500,6800	3040	100	a 120 × b86 × c26Ceramic
D471N80-90T	8000,8500,9000	565	100	a 58 × b34 × c26Ceramic
D2601N85-90T	8500,9000	2240	100	a 120 × b86 × c26 Ceramic


● DxSx 系列快速二极管（ Fast Diodes ）—平板型
	Up to 1400V ， 3000V ， 4500V

Part Number	VRRM (V)	IFAVM (A)	trr ( μS )	Package Style (mm)	Outline
Part Number	VRRM (V)	TC =85 -100 ℃	trr ( μS )	Package Style (mm)	Outline
D138S08-10T	800,900,1000	138	1.1	a 41 × b23 × c14	epoxy disc case (环氧平板型)
D238S08-12T	800,1000,1200	238	3.2
D368S10-14T	1000,1200,1400	368	4.1
D648S06-10T	600,800,1000	648	4.7	a 50 × b30 × c14
D658S10-14T	1000,1200,1400	658	5	a 50 × b30 × c14
D659S10-14T	1000,1200,1400	620	5	a 57 × b36 × c26
D228S22-25T	2200,2500	228	2	a 41 × b23 × c14
D348S16-20T	1600,1800,2000	348	4.2
D438S16-20T	1600,1800,2000	440	1.9
D689S20-26T	2000,2200,2400,2600	690	9	a 57 × b36 × c26
D1169S20-25T	2000,2500	1170	5	a75 × b48 × c26
D1408S20-25T	2000,2500	1410	5	a75 × b48 × c14
D440S16-20T	1600,1800,2000	440	1.9	a 56 × b34 × c26 Ceramic	Ceramic disc case(陶瓷平板型))
D675S20-25T	2000,2500	675	3.8
D690S20-26T	2000,2200,2400,2600	690	6.2
D1170S20-25T	2000,2500	1170	5	a 74 × b50 × c26 Ceramic
D291S35-45T	3500,4000,4500	290	--	a58 × b34 × c26Ceramic
D371S45T	4500	330	--	a58 × b34 × c26Ceramic
D721S35-45T	3500,4000,4500	720	--	a75 × b48 × c26 Ceramic
D901S35-45T	3500,4000,4500	900	--	a 100 × b63 × c26 Ceramic
